The implicit invocation mechanism of AOP introduces an additional layer of complexity in the construction of a system. This can make it harder to understand how base system and aspects interact and thus how the system will behave. For example, when writing pointcut definitions, it is not always clear for a developer where the aspect will intervene in the base code. This can then lead to situations where the pointcut either captures too many join points (false positives), or where certain join points that were intended to be captured, are not (false negatives). One variant of this problem is the so-called fragile pointcut problem.

AspectMaps is a software visualization tool built to aid the understanding of aspect-oriented software systems. It provides a scalable visualization of implicit invocation. AspectMaps visualizes selected join point shadows (a.k.a. shadow points): locations in the source code that at run-time produce a join point. AspectMaps visualizes the shadow points where an aspect will execute, and if multiple aspects will execute, the order in which they are specified to run. This results in a visualization that clearly shows how aspects cross-cut the base code, as well as how they interact at each join point. AspectMaps is a scalable visualization mainly due to its use of selective structural zooming. The structure of source code is shown at different levels of granularity, as specified by the user.

Introduction to AspectMaps

The AspectMaps structural zoom

Remaining major features of the AspectMaps UI

Visualizing Join Point Shadows with AspectMaps

Note: as AspectMaps is in continuous development, some of the features shown in the above screencasts may have undergone changes.

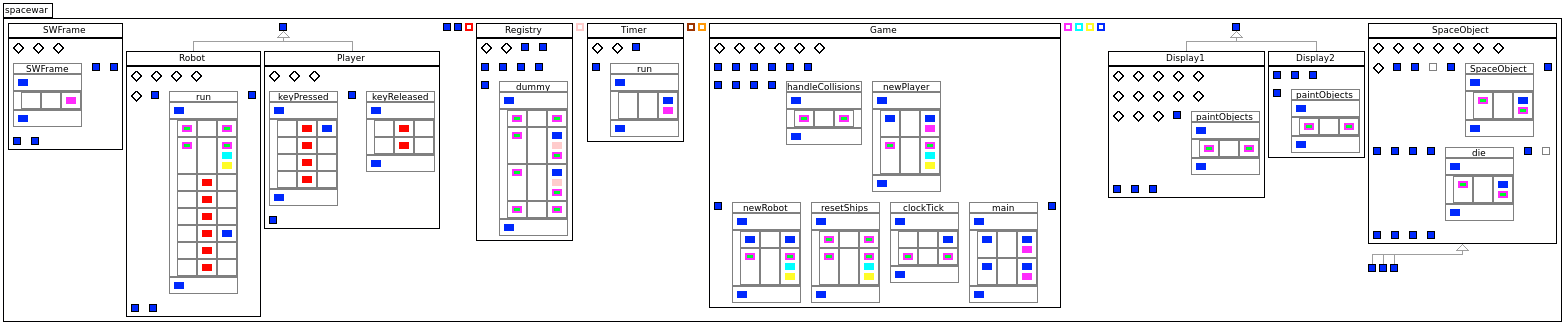

Below we show the SpaceWar example (that is part of AJDT), fully zoomed in on all join point shadows except for the dark blue Debug aspect.

• An element is colored with the color of the aspect that applies in the element, or the color that indicates multiple aspects apply.
• Zooming in on a package reveals the classes and aspects contained in that package, using a Polymetric Views-like visualisation.
• Zooming in on a class reveals the list of methods, painted as squares.

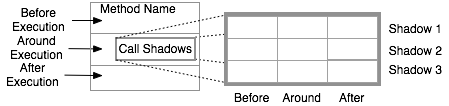

• Zooming in on a method visualizes the shadow points where an aspect will execute, painting colored rectangles for each aspect execution. Visualization of these shadow points follows the template below.

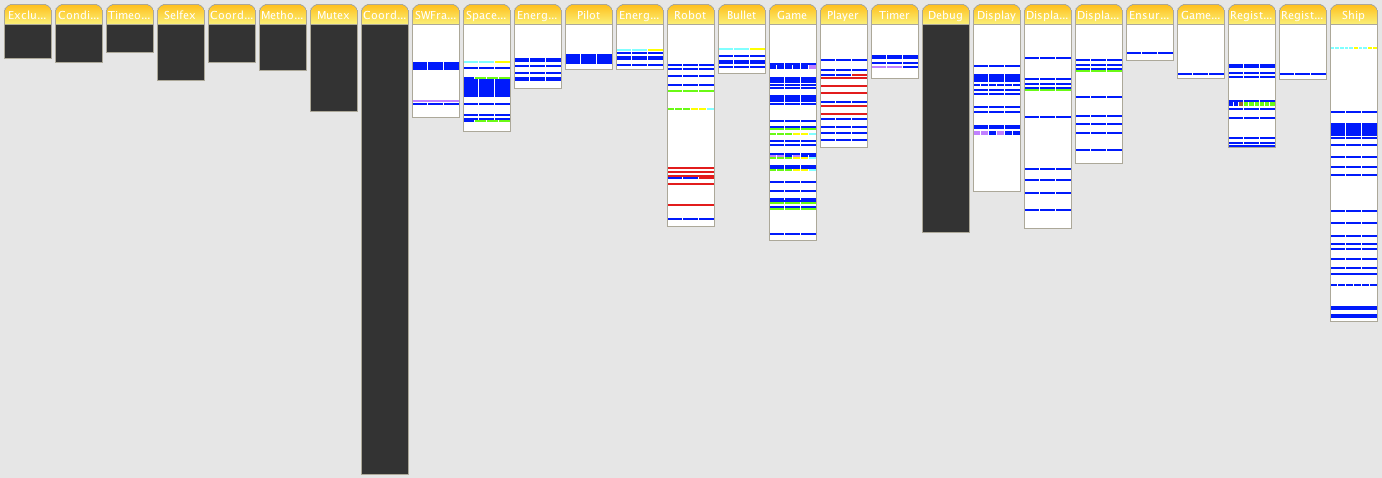

For a quick comparison between visualizations, below we show both the AspectMaps as well as the AJDT visualization of the same example.

The aspect-related data that is displayed in AspectMaps is generated by an Eclipse plugin called XCut Report, the base-code related data is extracted from the Eclipse model of the code. We implemented XCut Report, a recent version of the entire Eclipse project for XCut Report is found here: xcutreport.1.1.zip.

AspectMaps is implemented in Pharo Smalltalk, using the MOOSE platform for software and data analysis. The code is open source and available at SqueakSource under the MIT license (see below). We are planning to make a one-click executable available RSN.

The AspectMaps technical report TR/DCC-2010-2 discusses a preliminary version of AspectMaps, a newer version has been submitted to AOSD 2011. As part of the AOSD 2011 paper submission, we include here the complete results of the user study. Results were originally processed in the Numbers application of iWork, exported here as excel file for compatibility, which caused some formulas to be replaced with their values. userstudy.xls

Feel free to contact Johan for more information and/or an up-to-date version of the code of XCut report.
